OAS Air Pro Setup & Charging Guide

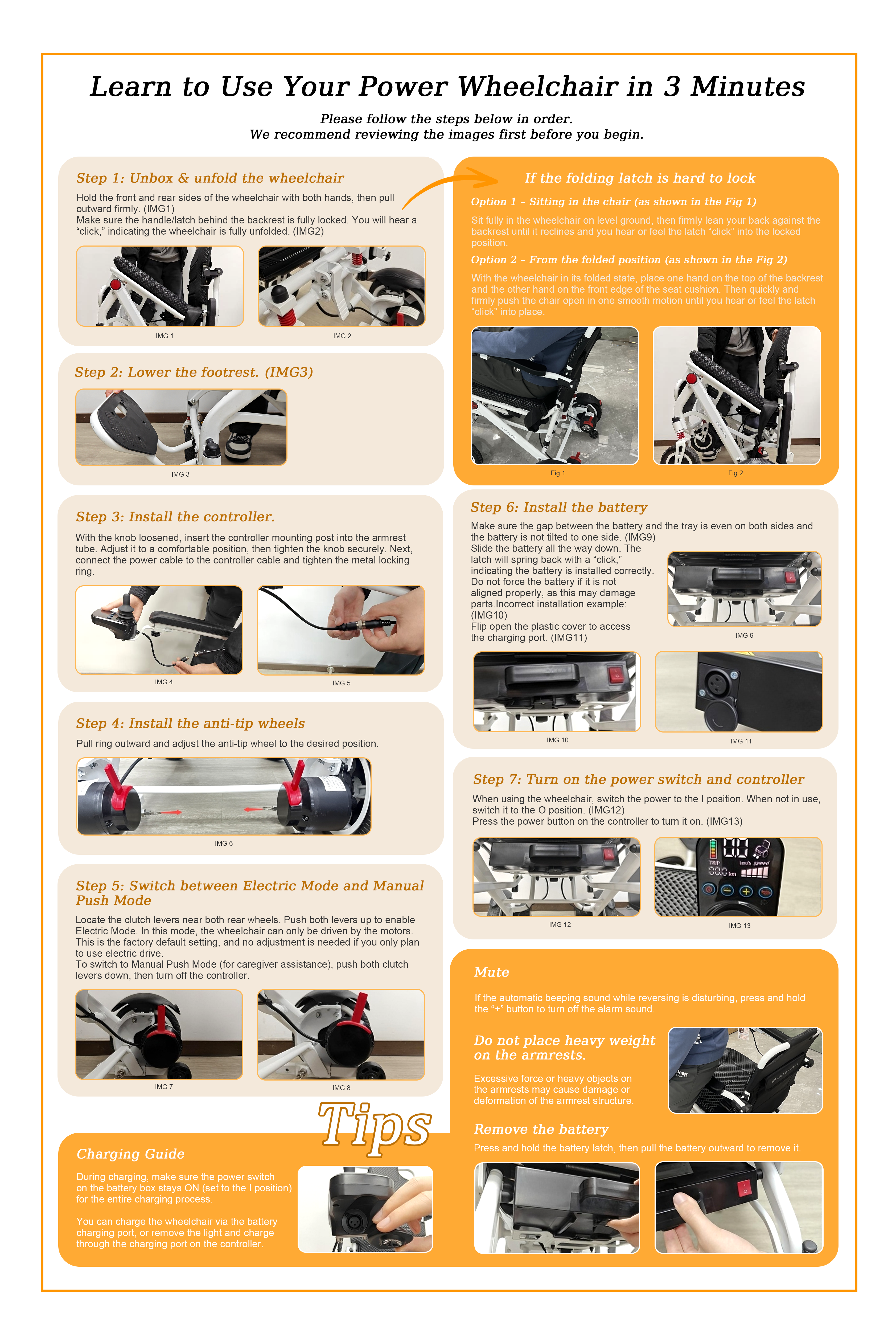

When you open the box, you will receive an installation manual like the one shown below to help you set up your Air Pro step by step 😊

---

📦 What’s in the Box

• 1× 95% pre-assembled Electric Wheelchair
• 1× Lithium battery
• 1× Battery charger pack
• 1× Seat cushion
• 1× User manual & toolkit

---

🛠️ How to Set Up Your Air Pro

Follow these simple steps to get your wheelchair ready:

Step 1: Unbox & unfold the wheelchair

Carefully remove the wheelchair from the box and unfold it completely.

Step 2: Lower the footrest

Lower the footrest into the down position.

Step 3: Install the controller

Attach the joystick controller securely in place.

Step 4: Install the anti-tip wheels

Fix the anti-tip wheels to ensure safe stability.

Step 5: Switch between modes

• Electric Mode (powered use)
• Manual Push Mode (manual movement)

Step 6: Install the battery

Insert the lithium battery into the battery compartment and lock it in place.

Step 7: Turn on the power

Switch on the battery power and controller to start using your Air Pro.

---

🔌 Charging Guide

To ensure safe and proper charging, please follow the instructions below:

• During charging, make sure the battery power switch stays ON
• Set the switch to the I position during the entire charging process
• The Air Pro can be charged in two ways:
  • Via the battery charging port
  • Via the charging port on the controller

✔ Always ensure all connections are fully inserted before charging

---

🧠 Quick Summary

• Fully pre-assembled (95%) for easy setup
• Simple 7-step installation process
• Battery must stay ON during charging
• Two charging options available
