OAS Air Ultra Setup Guide

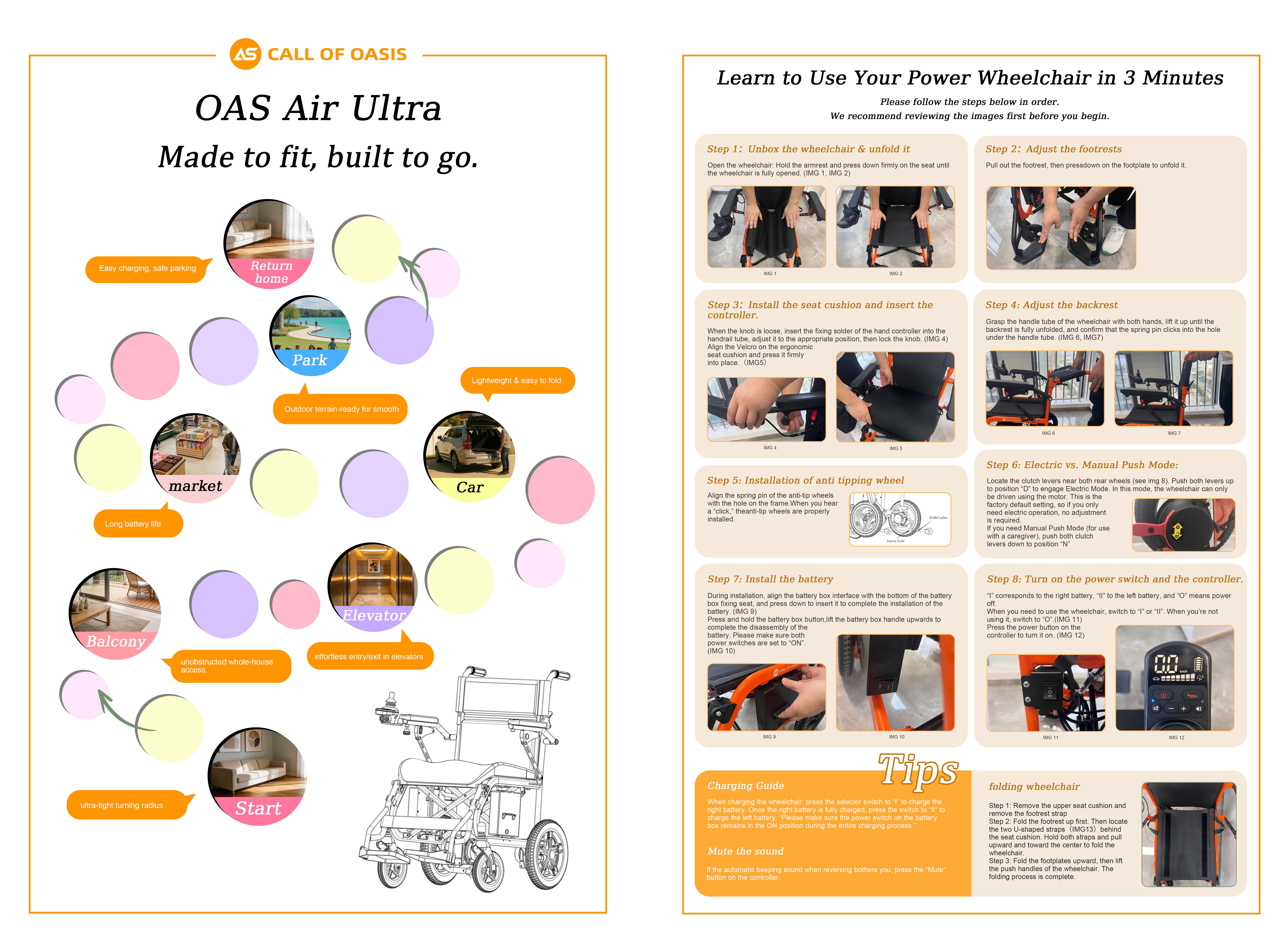

When you receive your OAS Air Ultra, you will find an installation manual inside the box to guide you through the setup process step by step 😊

---

📦 What’s in the Box

• 1× 95% pre-assembled Electric Wheelchair
• 2× Lithium batteries
• 1× Battery charger pack
• 1× User manual
• 1× Seat cushions

---

🛠️ Air Ultra Setup Steps

Please follow the steps below to complete the setup safely and correctly:

Step 1: Unbox the wheelchair & unfold it

Carefully remove the wheelchair from the packaging and unfold it fully.

Step 2: Adjust the footrests

Lower the footrests into position for use.

Step 3: Install the seat cushion & controller

Place the seat cushion onto the seat base, then insert and secure the controller (joystick).

Step 4: Adjust the backrest

Raise or position the backrest into a comfortable upright position before use.

Step 5: Install the anti-tip wheels

Attach the anti-tip wheels to ensure stability and safe operation.

Step 6: Electric vs. Manual Push Mode

Select the mode based on your needs:

• Electric Mode: powered driving
• Manual Push Mode: wheelchair can be pushed manually

Step 7: Install the battery

Insert the lithium battery into the battery compartment and lock it securely into place.

Step 8: Turn on the power switch & controller

Turn on the battery power switch to activate the system.

On the lower right side of the wheelchair, there is a battery selector switch:

• I = using the right battery
• II = using the left battery
• O = off

After turning on the battery power switch, please set the selector switch to either I or II to choose which battery to use.

Then turn on the controller to start using your Air Ultra.

---

🧠 Quick Summary

• 95% pre-assembled for easy setup
• Simple 8-step installation process
• Includes 2 lithium batteries
• Supports both electric and manual push modes
• Turn on the battery power switch first, then select I or II, and finally turn on the controller
